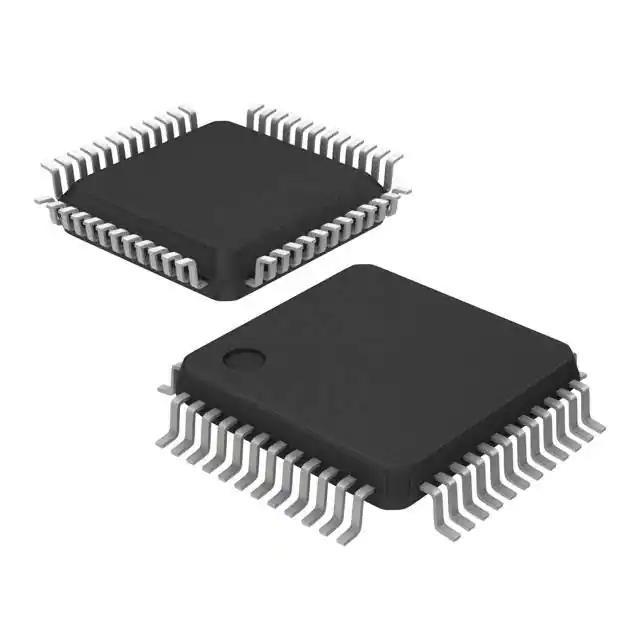

APM32F103RBT6 microcontroller
| 型号： | APM32F103RBT6 microcontroller | 更新时间： | 2022-03-04 14:51:21 |
| 厂家名称： | 配套产品 | 浏览量： | 960人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 64-LQFP | ||
| 包装： | 160 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Embedded Processors & Controllers/Microcontroller Units (MCUs/MPUs/SOCs) |
| Datasheet | Geehy APM32F103RBT6 |
| RoHS | |
| Program FLASH Size | 128KB |
| Operating Temperature Range | -40℃~+85℃ |
| Supply Voltage Range | 2V~3.6V |
| Peripherals / Functions / Protocol Stacks | Low-VoltageDetect;WDT;CCP capture/compare;LIN(Local Interconnect Network);On-chip temperature sensor;IrDA;CRC;DMA;Real-Time Clock |
| (E)PWM (Units/Channels/bits) | 1@x6ch/16bit |
| CPU Core | ARM Cortex-M3 |
| USB (H/D/OTG) | Full-speed USB Device |
| DAC (Units/Channels/bits) | - |
| ADC (Units/Channels/bits) | 2@x16ch/12bit |
| I2C Number | 2 |
| RAM Size | 20KB |
| U(S)ART Number | 3 |
| CMP Number | - |
| 32Bit Timer Number | - |
| 16Bit Timer Number | 3 |
| 8Bit Timer Number | - |
| Internal Oscillator | Internal oscillator included |
| Maximum Frequency | 72MHz |
| CAN Number | 1 |
| External Clock Frequency Rang | 4MHz~16MHz |
| (Q)SPI Number | 3 |
| GPIO Ports Number | 51 |
| I2S Number | - |
