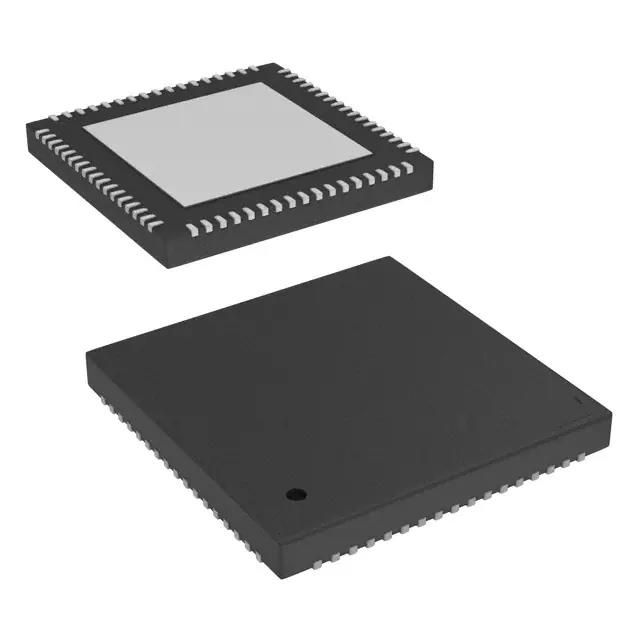

CH569W microcontroller
| 型号： | CH569W microcontroller | 更新时间： | 2022-03-03 16:24:32 |
| 厂家名称： | 配套产品 | 浏览量： | 1055人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 68-QFN | ||
| 包装： | 100 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Embedded Processors & Controllers/Microcontroller Units (MCUs/MPUs/SOCs) |
| Datasheet | WCH(Jiangsu Qin Heng) CH569W |
| RoHS | |
| Program FLASH Size | 448KB |
| Operating Temperature Range | -20℃~+85℃ |
| Supply Voltage Range | 2.3V~3.6V |
| Peripherals / Functions / Protocol Stacks | DMA;WDT;CCP capture/compare;Divider;Hardware Cryptographic Engine;Multiplier;SDIO;26BitTimer;Ethernet protocol stack |
| (E)PWM (Units/Channels/bits) | - |
| CPU Core | RISC-V |
| USB (H/D/OTG) | High-SpeedUSB Host/Device;Super Speed USB OTG |
| DAC (Units/Channels/bits) | - |
| ADC (Units/Channels/bits) | - |
| I2C Number | - |
| RAM Size | 16KB |
| U(S)ART Number | 4 |
| CMP Number | - |
| 32Bit Timer Number | - |
| 16Bit Timer Number | - |
| 8Bit Timer Number | - |
| Internal Oscillator | - |
| Maximum Frequency | 120MHz |
| CAN Number | - |
| External Clock Frequency Rang | 30MHz~30MHz |
| (Q)SPI Number | 3 |
| GPIO Ports Number | 49 |
| I2S Number | - |
| EEPROM/Data FLASH Size | 32KB |
