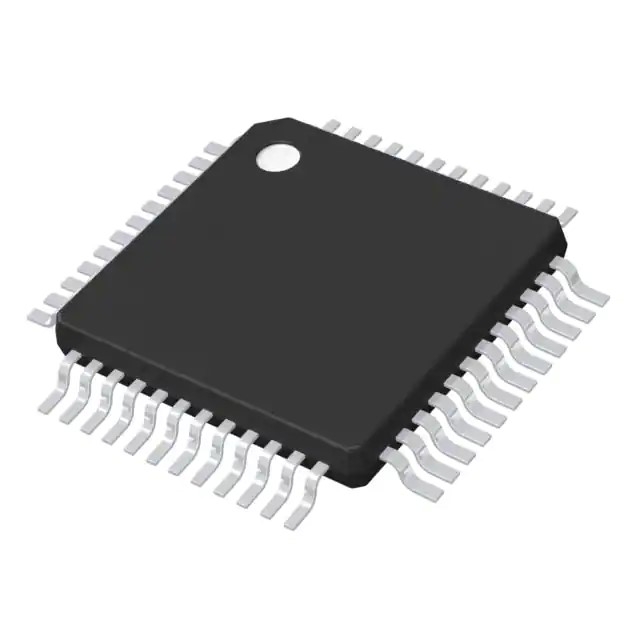

CH559L microcontroller
| 型号： | CH559L microcontroller | 更新时间： | 2022-03-02 16:57:11 |
| 厂家名称： | 配套产品 | 浏览量： | 968人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 48-LQFP | ||
| 包装： | 250 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Embedded Processors & Controllers/Microcontroller Units (MCUs/MPUs/SOCs) |
| Datasheet | WCH(Jiangsu Qin Heng) CH559L |
| RoHS | |
| Program FLASH Size | 63KB |
| Operating Temperature Range | -40℃~+85℃ |
| Supply Voltage Range | 3.3V~5V |
| Peripherals / Functions / Protocol Stacks | DMA;WDT;CCP capture/compare |
| (E)PWM (Units/Channels/bits) | 2@x8bit |
| CPU Core | 51Series |
| USB (H/D/OTG) | Full-speed Host/Device |
| DAC (Units/Channels/bits) | - |
| ADC (Units/Channels/bits) | 1@x8ch/10bit |
| I2C Number | - |
| RAM Size | 6.25KB |
| U(S)ART Number | 2 |
| CMP Number | - |
| 32Bit Timer Number | - |
| 16Bit Timer Number | 4 |
| 8Bit Timer Number | - |
| Internal Oscillator | Internal oscillator included |
| Maximum Frequency | 56MHz |
| CAN Number | - |
| External Clock Frequency Rang | 4MHz~20MHz |
| (Q)SPI Number | 2 |
| GPIO Ports Number | 45 |
| I2S Number | - |
| EEPROM/Data FLASH Size | 1KB |
