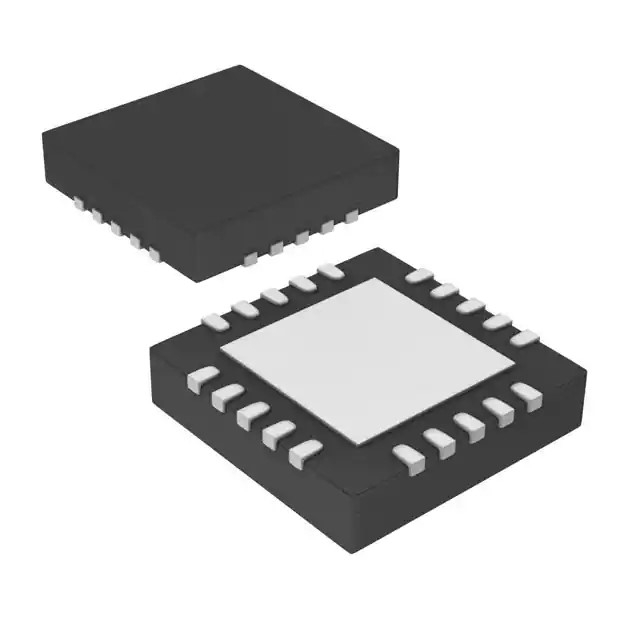

N76E003AQ20 microcontroller
| 型号： | N76E003AQ20 microcontroller | 更新时间： | 2022-02-23 09:47:42 |
| 厂家名称： | 配套产品 | 浏览量： | 877人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 20-WFQFN Exposed Pad | ||
| 包装： | 3000 per Tape & Reel (TR) | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | Nuvoton Technology Corporation of America |
| Series | N76 |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, I²S, POR, PWM, WDT |
| Number of I/O | 18 |
| Program Memory Size | 18KB (18K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 8x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (3x3) |
| Base Product Number | N76E003 |
