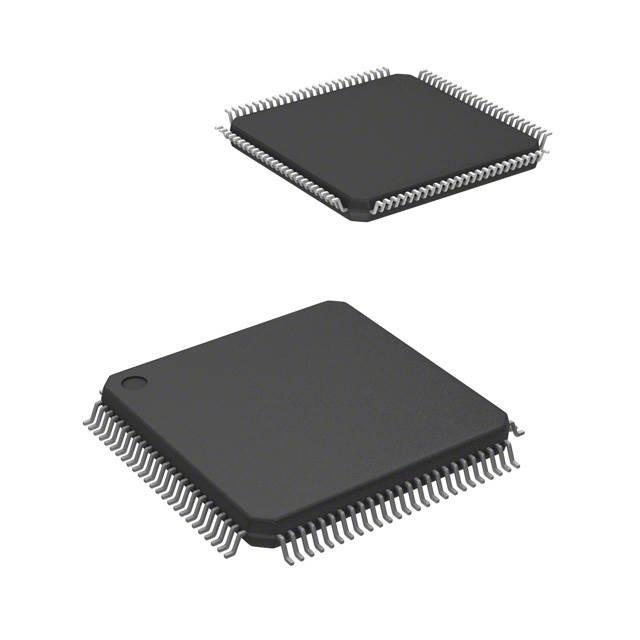

GD32F407VET6 microcontroller
| 型号： | GD32F407VET6 microcontroller | 更新时间： | 2022-02-18 14:32:24 |
| 厂家名称： | 配套产品 | 浏览量： | 996人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 100-LQFP | ||
| 包装： | 90 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Embedded Processors & Controllers/Microcontroller Units (MCUs/MPUs/SOCs) |
| Datasheet | GigaDevice Semicon Beijing GD32F407VET6 |
| RoHS | |
| Program FLASH Size | 512KB |
| Operating Temperature Range | -40℃~+85℃ |
| Supply Voltage Range | 2.6V~3.6V |
| CPU Core | ARM Cortex-M4 |
| (E)PWM (Units/Channels/bits) | 2@x16bit |
| Peripherals / Functions / Protocol Stacks | On-chip temperature sensor;DMA;WDT;LIN(Local Interconnect Network);PWM;Ethernet protocol stack;IrDA;SDIO;Real-Time Clock |
| DAC (Units/Channels/bits) | 2@x12bit |
| ADC (Units/Channels/bits) | 3@x12bit |
| USB (H/D/OTG) | full speed USB OTG;High-SpeedUSB OTG |
| RAM Size | 192KB |
| I2C Number | 3 |
| U(S)ART Number | 6 |
| CMP Number | - |
| 32Bit Timer Number | 2 |
| 16Bit Timer Number | 10 |
| 8Bit Timer Number | - |
| Internal Oscillator | Internal oscillator included |
| Maximum Frequency | 168MHz |
| External Clock Frequency Rang | 4MHz~32MHz |
| CAN Number | 2 |
| (Q)SPI Number | 3 |
| GPIO Ports Number | 82 |
| EEPROM/Data FLASH Size | - |
| I2S Number | - |
