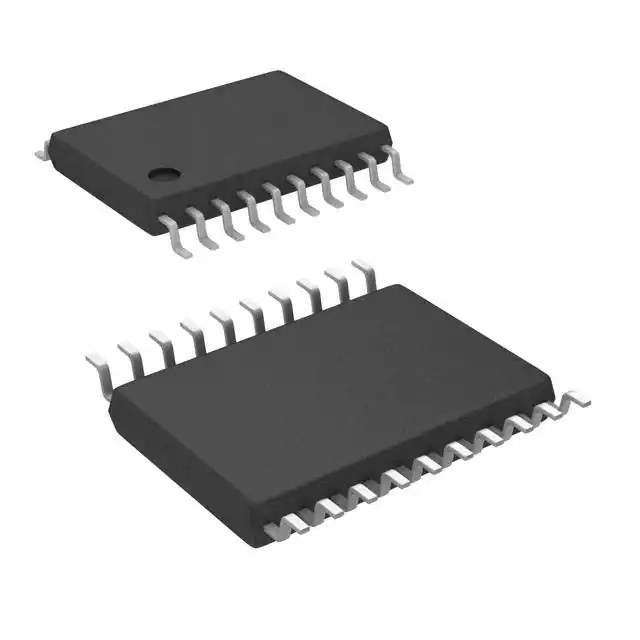

STM32F042F4P6 microcontroller
| 型号： | STM32F042F4P6 microcontroller | 更新时间： | 2022-02-15 13:54:45 |
| 厂家名称： | 配套产品 | 浏览量： | 782人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 20-TSSOP | ||
| 包装： | 74 per tube | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | STM32F0 |
| Package | Tube |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | CANbus, HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, I²S, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | STM32 |
