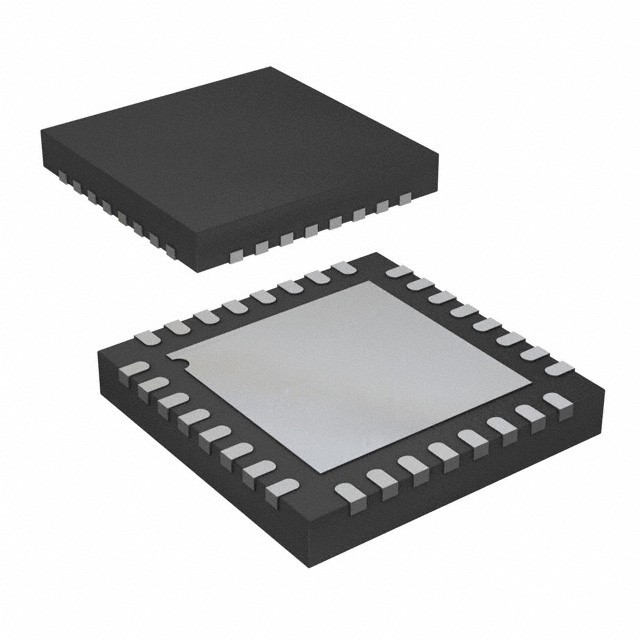

AD9245BCPZ-20 ADC
| 型号： | AD9245BCPZ-20 ADC | 更新时间： | 2022-01-24 14:45:21 |
| 厂家名称： | 配套产品 | 浏览量： | 757人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 32-LFCSP-WQ | ||
| 包装： | 490 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Data Acquisition - Analog to Digital Converters (ADC) | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tray |
| Part Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 20M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.25V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 32-LFCSP-WQ (5x5) |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
| Mounting Type | Surface Mount |
| Base Product Number | AD9245 |
