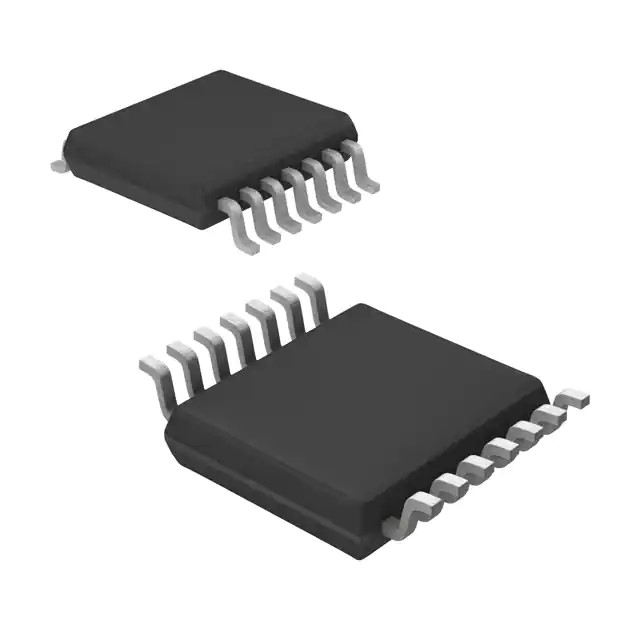

ADG1411YRUZ-REEL7 SWITCH
| 型号： | ADG1411YRUZ-REEL7 SWITCH | 更新时间： | 2022-01-21 11:33:19 |
| 厂家名称： | 配套产品 | 浏览量： | 776人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 16TSSOP | ||
| 包装： | 1000 per Tape & Reel (TR) | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tube |
| Part Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:01 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 1.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| -3db Bandwidth | 170MHz |
| Charge Injection | -20pC |
| Channel Capacitance (CS(off), CD(off)) | 23pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 550pA |
| Crosstalk | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ADG1411 |
