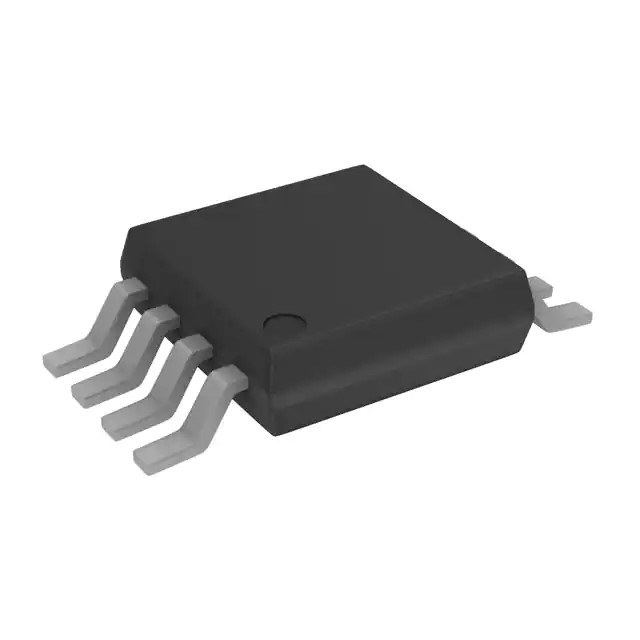

ADA4528-1ARMZ OPAMP
| 型号： | ADA4528-1ARMZ OPAMP | 更新时间： | 2022-01-20 15:46:10 |
| 厂家名称： | 配套产品 | 浏览量： | 827人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 8-TSSOP, 8-MSOP | ||
| 包装： | 50 per tube | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tube |
| Part Status | Active |
| Amplifier Type | Zero-Drift |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 4 MHz |
| Current - Input Bias | 90 pA |
| Voltage - Input Offset | 0.3 µV |
| Current - Supply | 1.5mA |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 2.2 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | ADA4528 |
