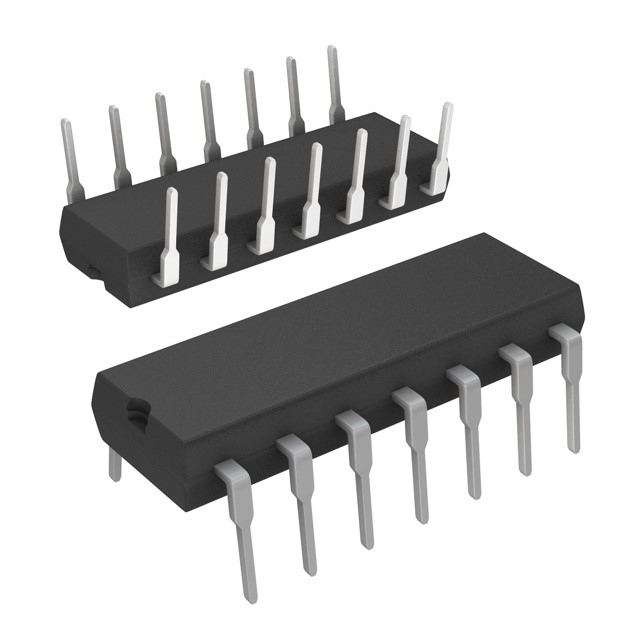

PIC16LF1614-I/P microcontroller
| 型号： | PIC16LF1614-I/P microcontroller | 更新时间： | 2022-01-18 16:18:57 |
| 厂家名称： | 配套产品 | 浏览量： | 727人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 14-DIP | ||
| 包装： | 30 per tube | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® XLP™ 16F |
| Package | Tube |
| Part Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 32MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x10b; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP |
| Base Product Number | PIC16LF1614 |
