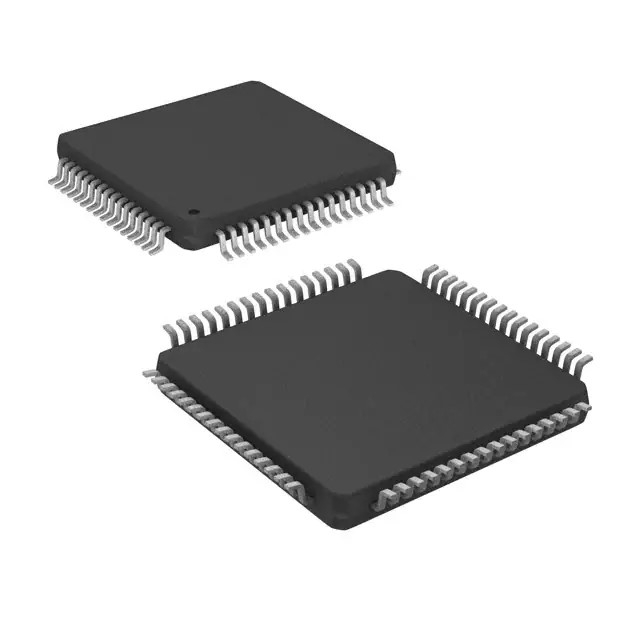

DSPIC33EP256GM706-I/PT microcontroller
| 型号： | DSPIC33EP256GM706-I/PT microcontroller | 更新时间： | 2022-01-18 09:57:47 |
| 厂家名称： | 配套产品 | 浏览量： | 741人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 64-TQFP | ||
| 包装： | 160 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | Microchip Technology |
| Series | dsPIC™ 33EP |
| Package | Tray |
| Part Status | Active |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Speed | 70 MIPs |
| Connectivity | CANbus, I²C, IrDA, LINbus, QEI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 53 |
| Program Memory Size | 256KB (85.5K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 30x10b/12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-TQFP |
| Supplier Device Package | 64-TQFP (10x10) |
| Base Product Number | DSPIC33EP256GM706 |
