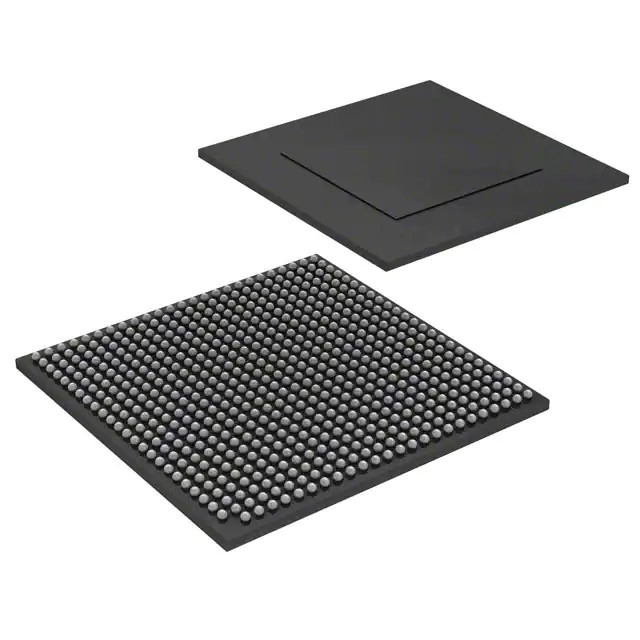

MCIMX6D7CVT08AD microcontroller
| 型号： | MCIMX6D7CVT08AD microcontroller | 更新时间： | 2022-01-17 15:58:11 |
| 厂家名称： | 配套产品 | 浏览量： | 722人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 624-FBGA, FCBGA | ||
| 包装： | 60 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microprocessors | |
| Mfr | NXP USA Inc. |
| Series | i.MX6D |
| Package | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A9 |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Speed | 800MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Ethernet | 10/100/1000Mbps (1) |
| SATA | SATA 3Gbps (1) |
| USB | USB 2.0 + PHY (4) |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection |
| Package / Case | 624-FBGA, FCBGA |
| Supplier Device Package | 624-FCBGA (21x21) |
| Additional Interfaces | CAN, I²C, I²S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
| Base Product Number | MCIMX6 |
