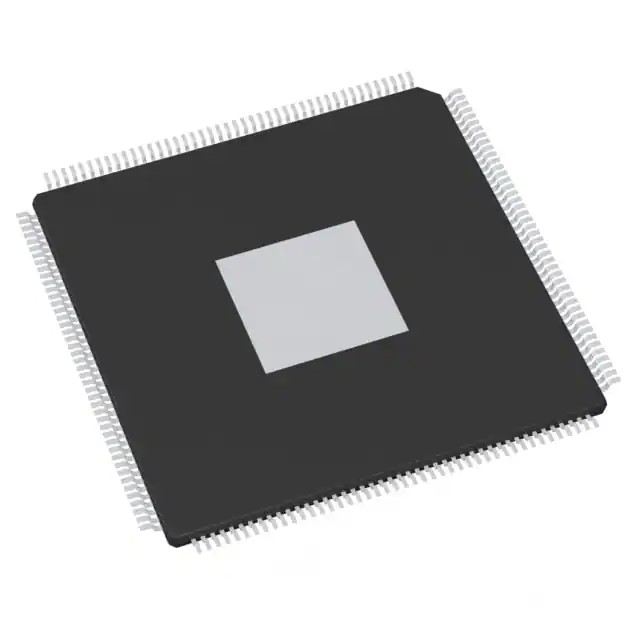

AM1705DPTP3 MPU
| 型号： | AM1705DPTP3 MPU | 更新时间： | 2022-01-14 10:46:54 |
| 厂家名称： | 配套产品 | 浏览量： | 744人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 176-LQFP Exposed Pad | ||
| 包装： | 40 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microprocessors | |
| Mfr | Texas Instruments |
| Series | Sitara™ |
| Package | Tube |
| Part Status | Active |
| Core Processor | ARM926EJ-S |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 375MHz |
| Co-Processors/DSP | System Control; CP15 |
| RAM Controllers | SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Ethernet | 10/100Mbps (1) |
| SATA | - |
| USB | USB 2.0 + PHY (1) |
| Voltage - I/O | 1.8V, 3.3V |
| Operating Temperature | 0°C ~ 90°C (TJ) |
| Security Features | - |
| Package / Case | 176-LQFP Exposed Pad |
| Supplier Device Package | 176-HLQFP (24x24) |
| Additional Interfaces | I²C, McASP, SPI, MMC/SD, UART |
| Base Product Number | AM1705 |
