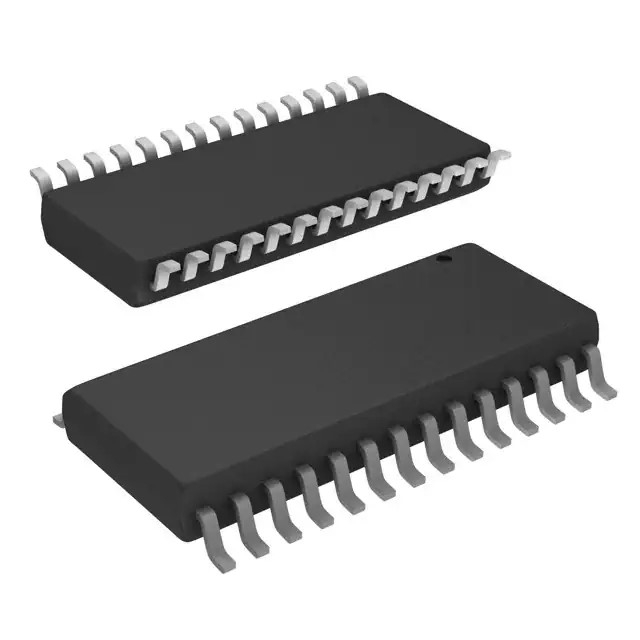

PIC18F2525-I/SO microcontroller
| 型号： | PIC18F2525-I/SO microcontroller | 更新时间： | 2022-01-13 15:03:11 |
| 厂家名称： | 配套产品 | 浏览量： | 756人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 28-SOIC | ||
| 包装： | 27 per tube | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Series | PIC® 18F |
| Package | Tube |
| Part Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 48KB (24K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 3.8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.2V ~ 5.5V |
| Data Converters | A/D 10x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Base Product Number | PIC18F2525 |
