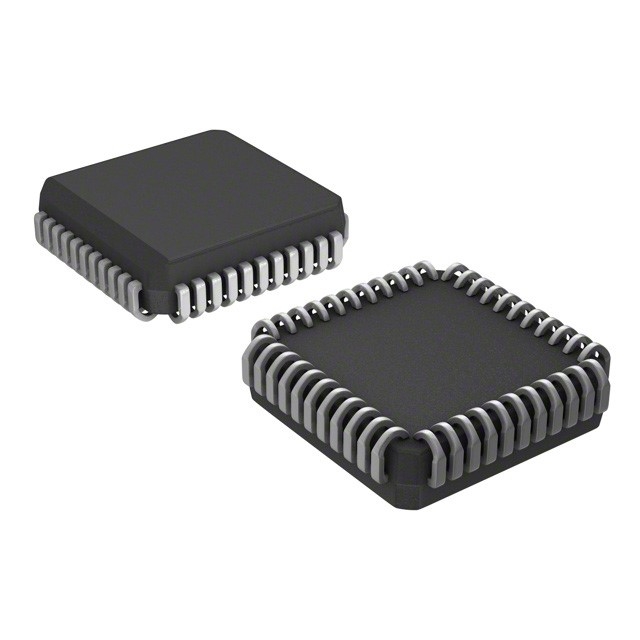

AT89C51IC2-SLSUM microcontroller
| 型号： | AT89C51IC2-SLSUM microcontroller | 更新时间： | 2022-01-12 14:30:18 |
| 厂家名称： | 配套产品 | 浏览量： | 755人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 44-PLCC | ||
| 包装： | 27 per tube | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | Microchip Technology |
| Series | 89C |
| Package | Tube |
| Part Status | Active |
| Core Processor | 80C51 |
| Core Size | 8-Bit |
| Speed | 60MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1.25K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.6x16.6) |
| Base Product Number | AT89C51 |
