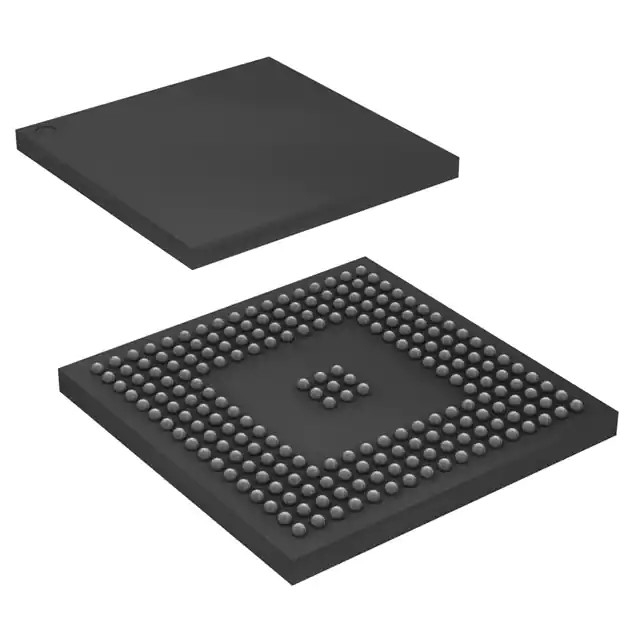

AT91SAM9X35-CU microcontroller
| 型号： | AT91SAM9X35-CU microcontroller | 更新时间： | 2022-01-11 17:45:52 |
| 厂家名称： | 配套产品 | 浏览量： | 755人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 217-LFBGA | ||
| 包装： | 126 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microprocessors | |
| Mfr | Microchip Technology |
| Series | SAM9X |
| Package | Tray |
| Part Status | Active |
| Core Processor | ARM926EJ-S |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 400MHz |
| Co-Processors/DSP | - |
| RAM Controllers | LPDDR, LPDDR2, DDR2, DDR, SDR, SRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, Touchscreen |
| Ethernet | 10/100Mbps |
| SATA | - |
| USB | USB 2.0 (3) |
| Voltage - I/O | 1.8V, 2.5V, 3.0V, 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Security Features | - |
| Package / Case | 217-LFBGA |
| Supplier Device Package | 217-LFBGA (15x15) |
| Additional Interfaces | CAN, EBI/EMI, I²C, MMC/SD/SDIO, SPI, SSC, UART/USART |
| Base Product Number | AT91SAM9 |
