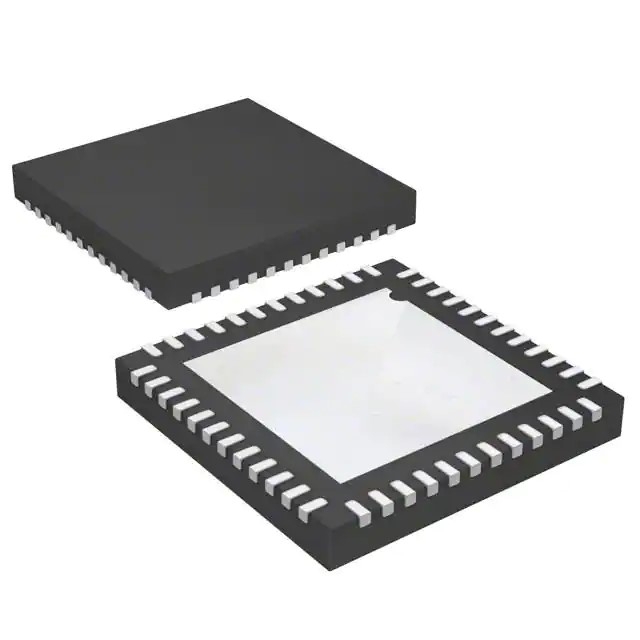

CC430F5137IRGZR RF
| 型号： | CC430F5137IRGZR RF | 更新时间： | 2022-01-10 16:19:01 |
| 厂家名称： | 配套产品 | 浏览量： | 758人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 48-VFQFN Exposed Pad | ||
| 包装： | 2500 per Tape & Reel (TR) | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | RF/IF and RFID |
| RF Transceiver ICs | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | TxRx + MCU |
| RF Family/Standard | General ISM < 1GHz |
| Protocol | - |
| Modulation | 2FSK, 2GFSK, ASK, MSK, OOK |
| Frequency | 300MHz ~ 348MHz, 389MHz ~ 464MHz, 779MHz ~ 928MHz |
| Data Rate (Max) | 500kBaud |
| Power - Output | 13dBm |
| Sensitivity | -117dBm |
| Memory Size | 32kB Flash, 4kB SRAM |
| Serial Interfaces | I²C, IrDA, JTAG, SPI, UART |
| GPIO | 30 |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Receiving | 15mA ~ 18.5mA |
| Current - Transmitting | 15mA ~ 36mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Base Product Number | CC430F5137 |
