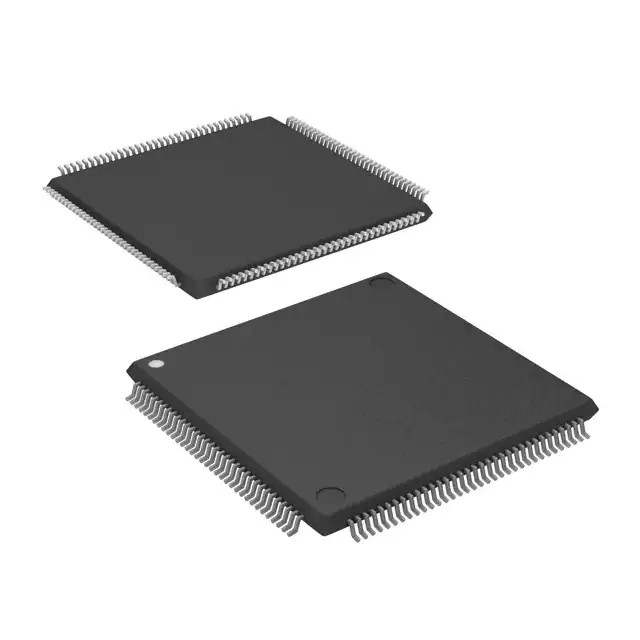

F28M35H52C1RFPT microcontroller
| 型号： | F28M35H52C1RFPT microcontroller | 更新时间： | 2022-01-07 17:26:20 |
| 厂家名称： | 配套产品 | 浏览量： | 795人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 144-TQFP | ||
| 包装： | 60 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | Texas Instruments |
| Series | C2000™ C28x + ARM® Cortex® M3 Concerto™ |
| Package | Tray |
| Part Status | Active |
| Core Processor | C28x/ARM® Cortex®-M3 |
| Core Size | 32-Bit Dual-Core |
| Speed | 100MHz/150MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, SCI, SPI, SSI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 74 |
| Program Memory Size | 512KB/512KB |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 136KB |
| Voltage - Supply (Vcc/Vdd) | 1.2V, 1.8V, 3.3V |
| Data Converters | A/D 20x12b |
| Oscillator Type | - |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 144-TQFP Exposed Pad |
| Supplier Device Package | 144-HTQFP (20x20) |
| Base Product Number | F28M35H52C1 |
