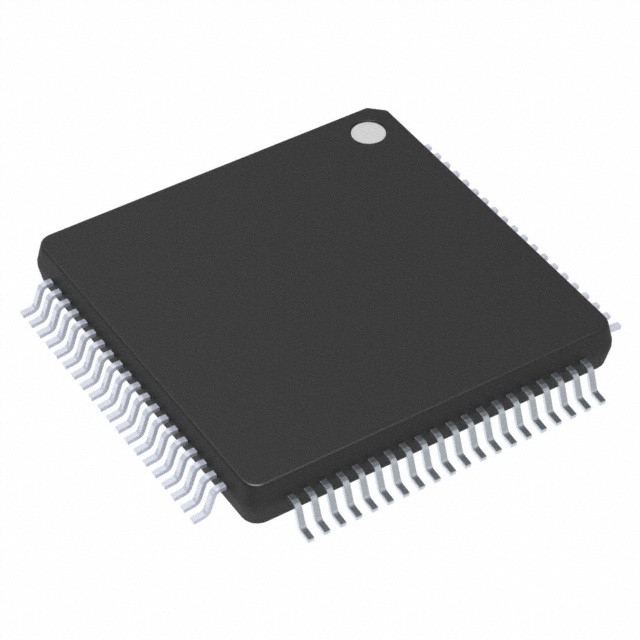

MC56F84766VLK microcontroller
| 型号： | MC56F84766VLK microcontroller | 更新时间： | 2022-01-07 16:44:39 |
| 厂家名称： | 配套产品 | 浏览量： | 735人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 80-LQFP | ||
| 包装： | 96 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | 56F8xxx |
| Package | Tray |
| Part Status | Active |
| Core Processor | 56800EX |
| Core Size | 32-Bit |
| Speed | 100MHz |
| Connectivity | CANbus, I²C, LINbus, SCI, SPI |
| Peripherals | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT |
| Number of I/O | 68 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 16x12b, 10x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 80-LQFP |
| Supplier Device Package | 80-FQFP (12x12) |
| Base Product Number | MC56 |
