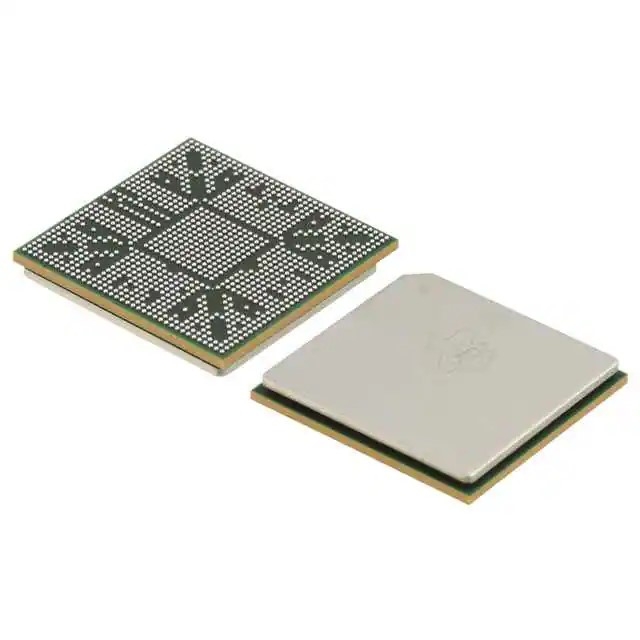

TMS320DM8168CCYG2 DSP
| 型号： | TMS320DM8168CCYG2 DSP | 更新时间： | 2022-01-07 11:44:53 |
| 厂家名称： | 配套产品 | 浏览量： | 731人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 1031-BFBGA, FCBGA | ||
| 包装： | 44 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - DSP (Digital Signal Processors) | |
| Mfr | Texas Instruments |
| Series | DM81x Video SOC, DaVinci™ |
| Package | Tray |
| Part Status | Active |
| Type | Digital Media System-on-Chip (DMSoC) |
| Interface | EBI/EMI, Ethernet, I²C, McASP, McBSP, PCI, Serial ATA, SD/SDIO, SPI, UART, USB |
| Clock Rate | 1GHz DSP, 1.2GHz ARM® |
| Non-Volatile Memory | ROM (48kB) |
| On-Chip RAM | 1.5MB |
| Voltage - I/O | 1.5V, 1.8V, 3.3V |
| Voltage - Core | 1.00V |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 1031-BFBGA, FCBGA |
| Supplier Device Package | 1031-FCBGA (25x25) |
| Base Product Number | TMS320 |
