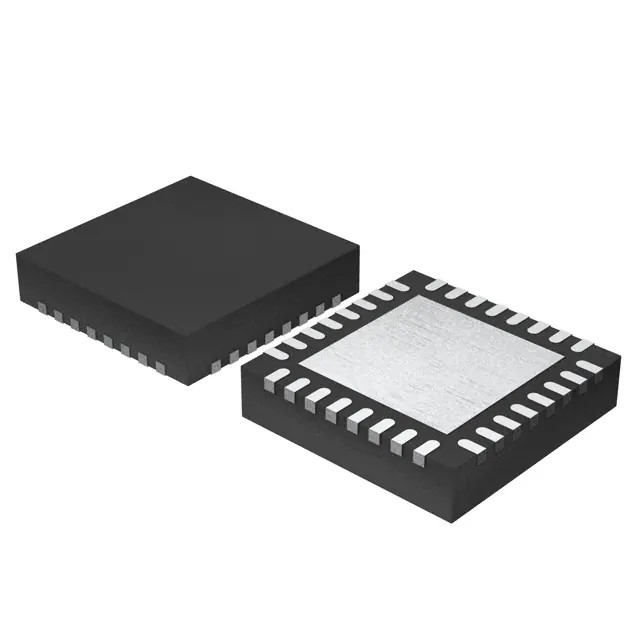

MK20DX128VFM5 microcontroller
| 型号： | MK20DX128VFM5 microcontroller | 更新时间： | 2022-01-06 12:03:51 |
| 厂家名称： | 配套产品 | 浏览量： | 727人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 32-VFQFN Exposed Pad | ||
| 包装： | 490 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | Kinetis K20 |
| Package | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Speed | 50MHz |
| Connectivity | I²C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT |
| Number of I/O | 20 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 6x16b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN-EP (5x5) |
| Base Product Number | MK20DX128 |
