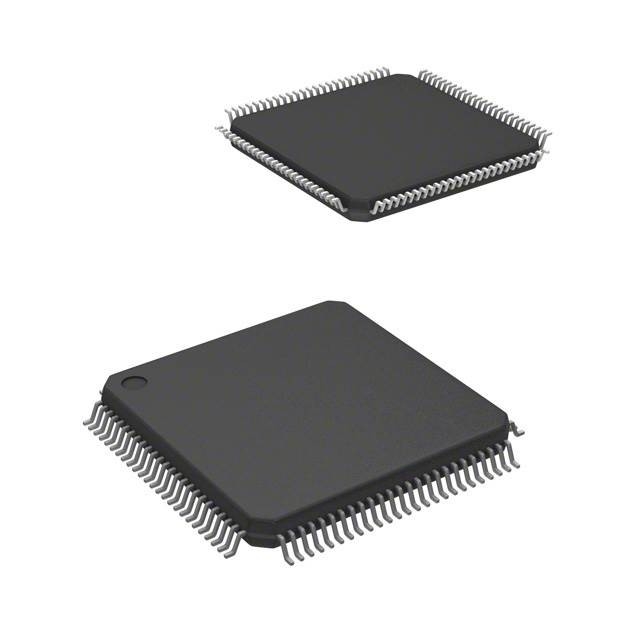

MK20DN512VLL10 microcontroller
| 型号： | MK20DN512VLL10 microcontroller | 更新时间： | 2022-01-05 17:43:07 |
| 厂家名称： | 配套产品 | 浏览量： | 732人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 100-LQFP | ||
| 包装： | 90 per tray | ||
详细说明：
| Specifications： | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | Kinetis K20 |
| Package | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT |
| Number of I/O | 66 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 33x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14x14) |
| Supplier Device Package | 100-LQFP (14x14) |
| Base Product Number | MK20DN512 |
