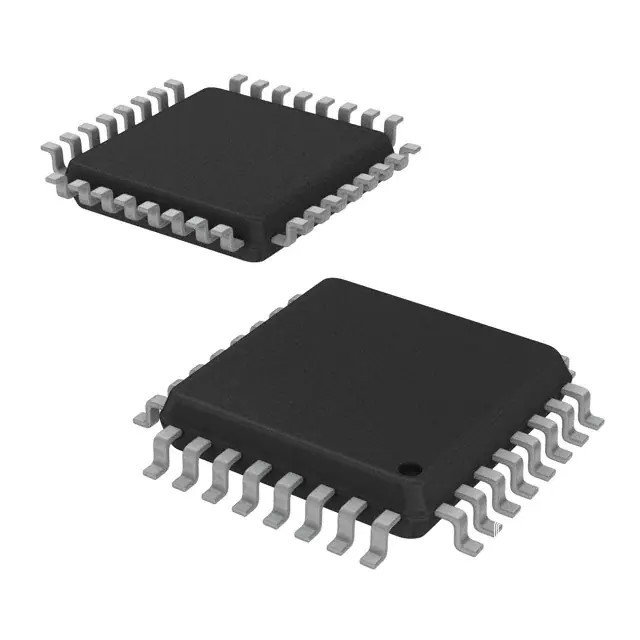

MC56F8013VFAE microcontroller
| 型号： | MC56F8013VFAE microcontroller | 更新时间： | 2022-01-05 13:59:37 |
| 厂家名称： | 配套产品 | 浏览量： | 723人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 32-LQFP | ||
| 包装： | 125 per tray | ||
详细说明：
| Specifications： | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | 56F8xxx |
| Package | Tray |
| Part Status | Active |
| Core Processor | 56800E |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I²C, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 16 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 6x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-LQFP |
| Supplier Device Package | 32-LQFP (7x7) |
| Base Product Number | MC56 |
