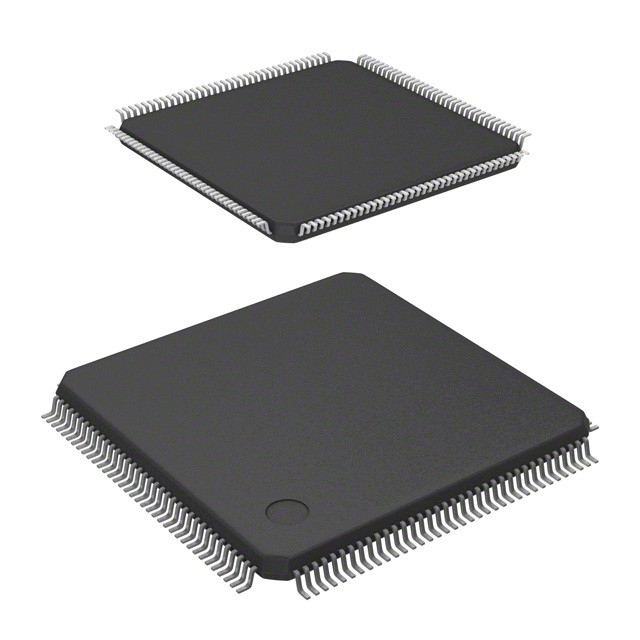

LPC1837JBD144E microcontroller
| 型号： | LPC1837JBD144E microcontroller | 更新时间： | 2021-12-29 15:45:30 |
| 厂家名称： | 配套产品 | 浏览量： | 762人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 144-LQFP | ||
| 包装： | 60 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | LPC18xx |
| Package | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 83 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 136K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Data Converters | A/D 8x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LQFP (20x20) |
| Base Product Number | LPC1837 |
