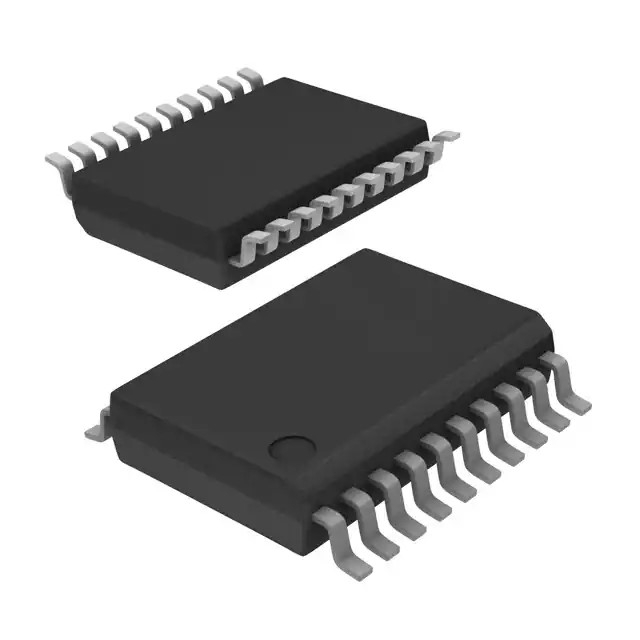

PIC16LF1508-E/SS microcontroller
| 型号： | PIC16LF1508-E/SS microcontroller | 更新时间： | 2021-12-29 09:19:18 |
| 厂家名称： | 配套产品 | 浏览量： | 730人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 20-SSOP | ||
| 包装： | 35 per tube | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® XLP™ 16F |
| Package | Tube |
| Part Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 12x10b; D/A 1x5b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| Base Product Number | PIC16LF1508 |
