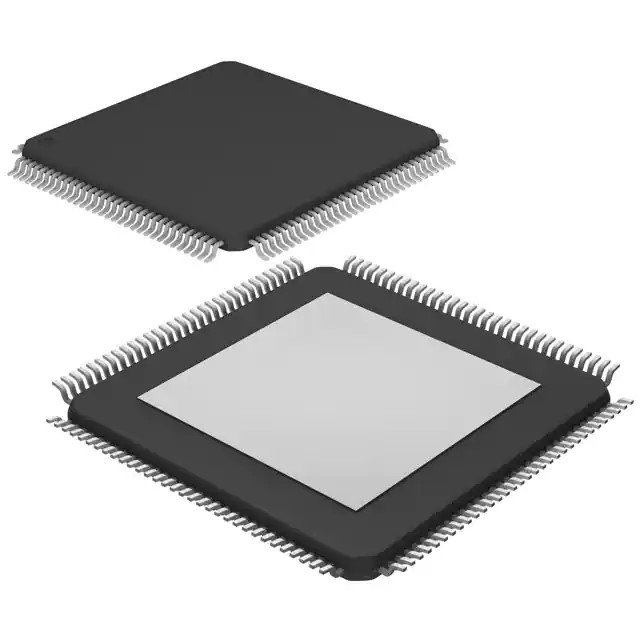

TM4C1294NCPDTI3 microcontroller
| 型号： | TM4C1294NCPDTI3 microcontroller | 更新时间： | 2021-12-28 16:56:07 |
| 厂家名称： | 配套产品 | 浏览量： | 746人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 128-TQFP | ||
| 包装： | 90 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | Texas Instruments |
| Series | Tiva™ C |
| Package | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, QEI, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT |
| Number of I/O | 90 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 6K x 8 |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 3.63V |
| Data Converters | A/D 20x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 128-TQFP |
| Supplier Device Package | 128-TQFP (14x14) |
| Base Product Number | TM4C1294 |
