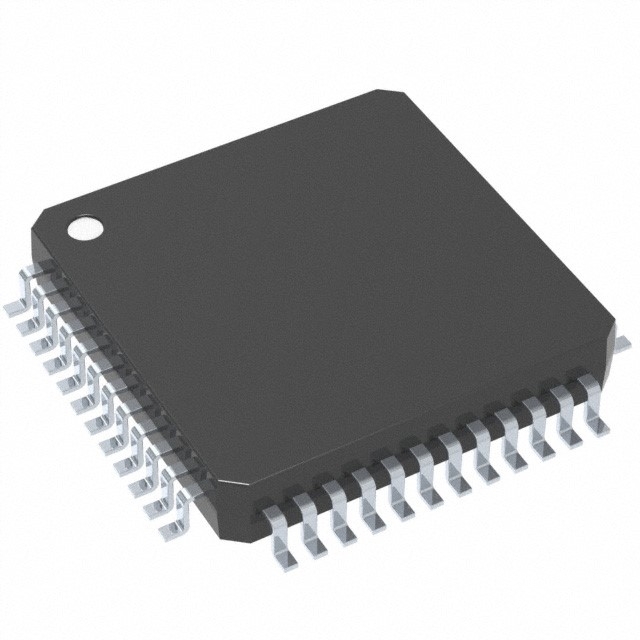

LPC11U68JBD48E microcontroller
| 型号： | LPC11U68JBD48E microcontroller | 更新时间： | 2021-12-28 16:08:33 |
| 厂家名称： | 配套产品 | 浏览量： | 736人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 48-LQFP | ||
| 包装： | 250 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | LPC11Uxx |
| Package | Tray |
| Part Status | Discontinued at Digi-Key |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 50MHz |
| Connectivity | I²C, Microwire, SPI, SSI, SSP, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 36K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Data Converters | A/D 8x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Base Product Number | LPC11 |
