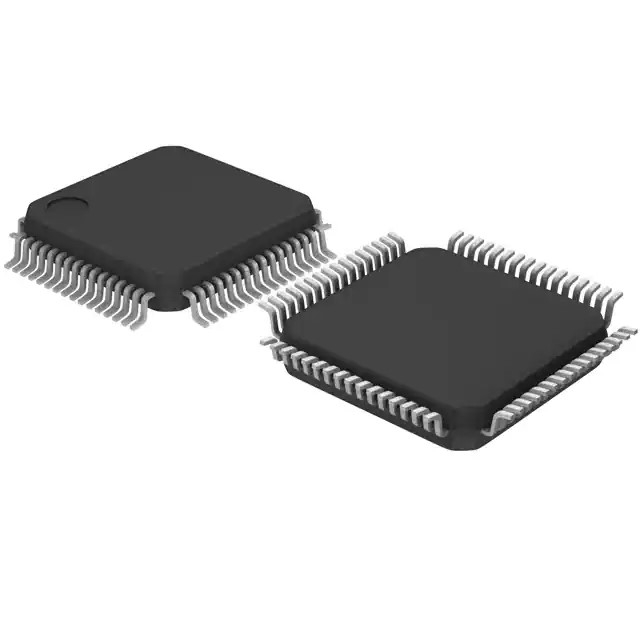

LPC2119FBD64/01,15 microcontroller
| 型号： | LPC2119FBD64/01,15 microcontroller | 更新时间： | 2021-12-28 14:41:59 |
| 厂家名称： | 配套产品 | 浏览量： | 712人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 64-LQFP | ||
| 包装： | 160 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | NXP USA Inc. |
| LPC2100 | |
| Package | Tray |
| Part Status | Not For New Designs |
| Core Processor | ARM7® |
| Core Size | 16/32-Bit |
| Speed | 60MHz |
| Connectivity | CANbus, I²C, Microwire, SPI, SSI, SSP, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 46 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| Base Product Number | LPC21 |
