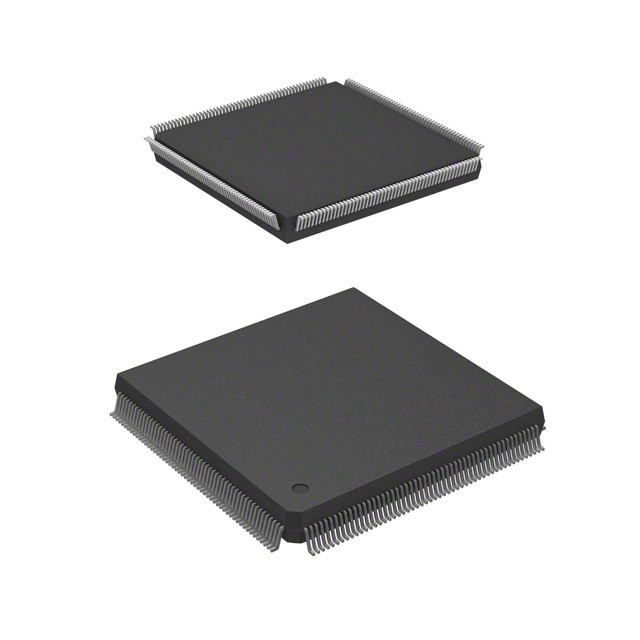

AT91SAM9260B-QU microcontroller
| 型号： | AT91SAM9260B-QU microcontroller | 更新时间： | 2021-12-28 13:55:44 |
| 厂家名称： | 配套产品 | 浏览量： | 754人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 208-BFQFP | ||
| 包装： | 24 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microprocessors | |
| Mfr | Microchip Technology |
| Series | AT91SAM |
| Package | Tray |
| Part Status | Active |
| Core Processor | ARM926EJ-S |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 180MHz |
| Co-Processors/DSP | - |
| RAM Controllers | SDRAM, SRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Ethernet | 10/100Mbps |
| SATA | - |
| USB | USB 2.0 (2) |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Security Features | - |
| Package / Case | 208-BFQFP |
| Supplier Device Package | 208-PQFP (28x28) |
| Additional Interfaces | EBI/EMI, I²C, ISI, MMC/SD/SDIO, SPI, SSC, UART/USART |
| Base Product Number | AT91SAM9260 |
