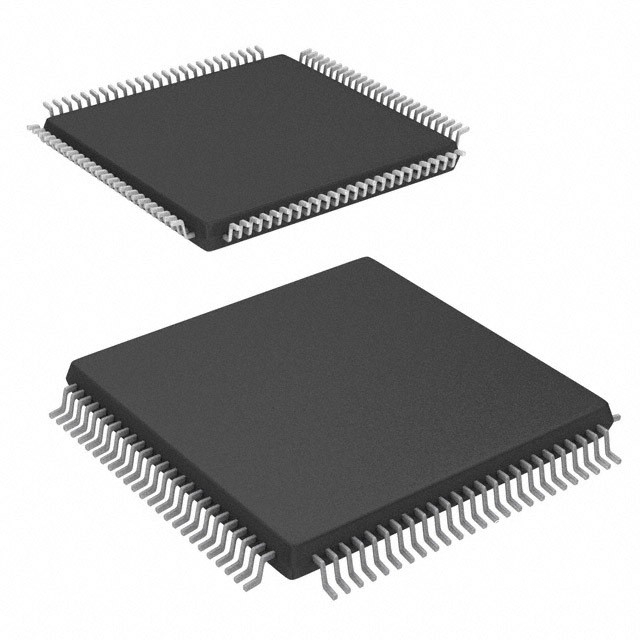

C8051F040-GQR microcontroller
| 型号： | C8051F040-GQR microcontroller | 更新时间： | 2021-12-27 15:46:17 |
| 厂家名称： | 配套产品 | 浏览量： | 767人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 100-TQFP | ||
| 包装： | 250 per Tape & Reel (TR) | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | Silicon Labs |
| Series | C8051F04x |
| Package | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 25MHz |
| Connectivity | CANbus, EBI/EMI, SMBus (2-Wire/I²C), SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 64 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4.25K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 8x8b, 13x12b; D/A 2x10b, 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-TQFP |
| Supplier Device Package | 100-TQFP (14x14) |
| Base Product Number | C8051F040 |
