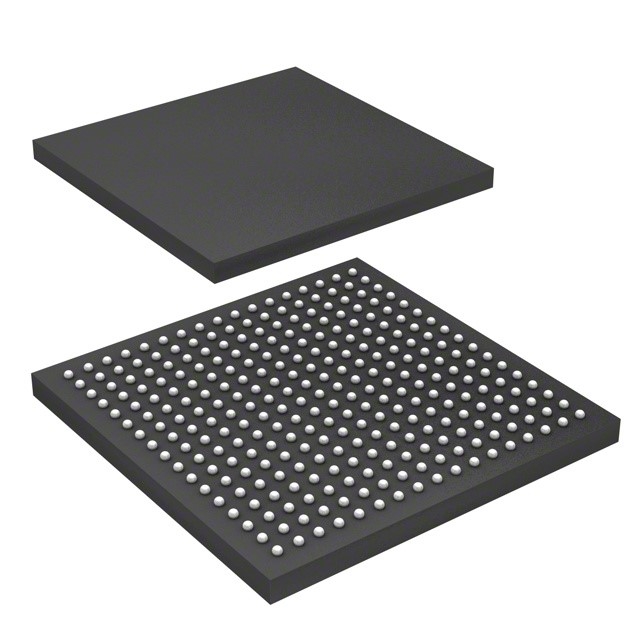

MCIMX6Y2CVM08AB microprocessor
| 型号： | MCIMX6Y2CVM08AB microprocessor | 更新时间： | 2021-12-27 11:29:40 |
| 厂家名称： | 配套产品 | 浏览量： | 905人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 289-LFBGA | ||
| 包装： | 152 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microprocessors | |
| Mfr | NXP USA Inc. |
| Series | i.MX6 |
| Package | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A7 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 792MHz |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | Electrophoretic, LCD |
| Ethernet | 10/100Mbps (1) |
| SATA | - |
| USB | USB 2.0 OTG + PHY (2) |
| Voltage - I/O | 1.8V, 2.8V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Security Features | A-HAB, ARM TZ, CSU, SJC, SNVS |
| Package / Case | 289-LFBGA |
| Supplier Device Package | 289-MAPBGA (14x14) |
| Additional Interfaces | CAN, I²C, SPI, UART |
| Base Product Number | MCIMX6 |
