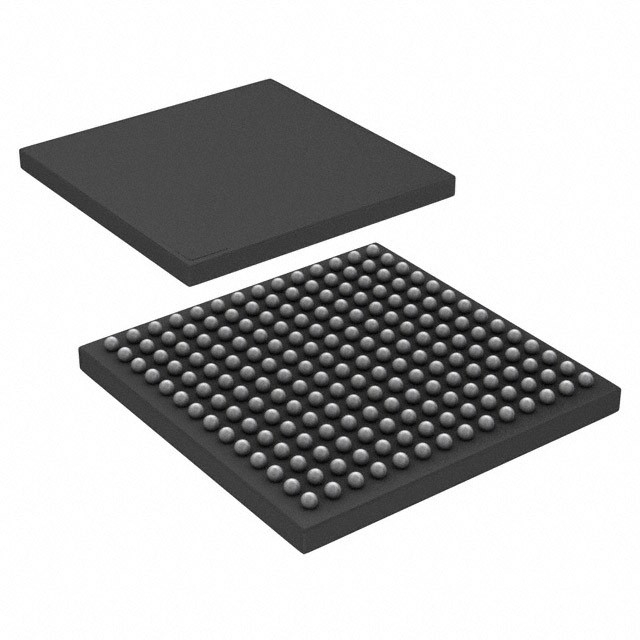

MIMXRT1052CVL5A microcontroller
| 型号： | MIMXRT1052CVL5A microcontroller | 更新时间： | 2021-12-23 15:04:49 |
| 厂家名称： | 配套产品 | 浏览量： | 846人次 |
| 批次： | 技术PDF手册： |  |
|
| 库存数量： | 0 | 订货电话： | +86-755-23816381 |
| 封装： | 196-LFBGA | ||
| 包装： | 240 per tray | ||
详细说明：
| Specifications: | |
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Embedded - Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | RT1050 |
| Package | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 528MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 127 |
| Program Memory Size | - |
| Program Memory Type | External Program Memory |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 20x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 196-LFBGA |
| Supplier Device Package | 196-LFBGA (10x10) |
| Base Product Number | MIMXRT1052 |
