APM32F051R8T6 microcontroller
| ModelCode: | APM32F051R8T6 microcontroller | Update: | 2022-03-15 17:50:54 |
| Factory: | Connectors and Cables | Hits: | 842 |
| Dcs: | Tech PDF: |  |
|
| Stock Qty: | 0 | Sales Phone: | +86-755-23816381 |

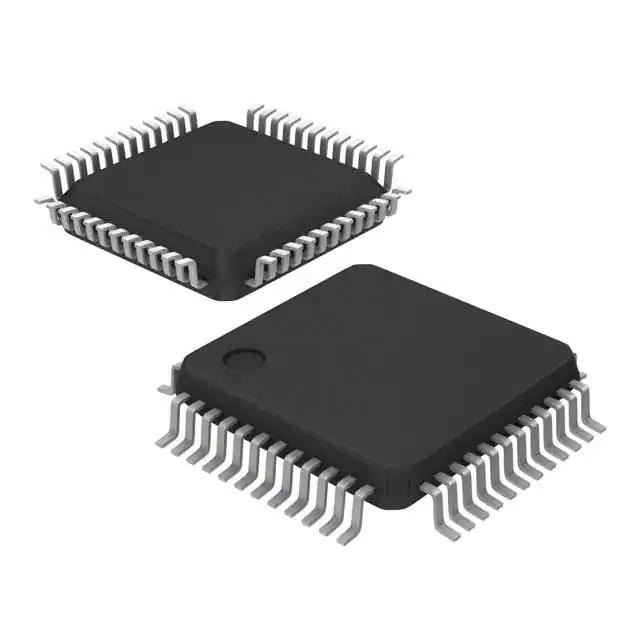

| Seal: | 64-LQFP | ||
| Packing: | 160 per tray | ||
Description:
| Specifications: | |
| Attribute | Value |
| Category | Embedded Processors & Controllers/Microcontroller Units (MCUs/MPUs/SOCs) |
| Datasheet | Geehy APM32F051R8T6 |
| RoHS | |
| Program FLASH Size | 64KB |
| Operating Temperature Range | -40℃~+85℃ |
| Supply Voltage Range | 2V~3.6V |
| Peripherals / Functions / Protocol Stacks | Low-VoltageDetect;WDT;CCP capture/compare;LIN(Local Interconnect Network);Touch button;On-chip temperature sensor;IrDA;CRC;DMA;Real-Time Clock |
| (E)PWM (Units/Channels/bits) | 1@x7ch/16bit |
| CPU Core | ARM Cortex-M0 |
| USB (H/D/OTG) | - |
| DAC (Units/Channels/bits) | 1@x1ch/12bit |
| ADC (Units/Channels/bits) | 1@x16ch/12bit |
| I2C Number | 2 |
| RAM Size | 8KB |
| U(S)ART Number | 2 |
| CMP Number | 2 |
| 32Bit Timer Number | 1 |
| 16Bit Timer Number | 6 |
| 8Bit Timer Number | - |
| Internal Oscillator | Internal oscillator included |
| Maximum Frequency | 48MHz |
| CAN Number | - |
| External Clock Frequency Rang | 4MHz~32MHz |
| (Q)SPI Number | 2 |
| GPIO Ports Number | 55 |
| I2S Number | - |
| EEPROM/Data FLASH Size | - |
