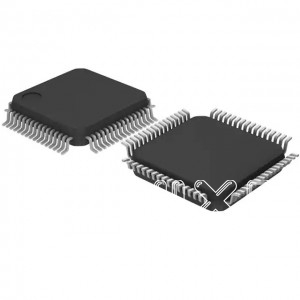

GD32F407RET6 microcontroller

ModelCode:	GD32F407RET6 microcontroller	Update:	2022-03-02 15:54:18
Factory:	Connectors and Cables	Hits:	420
Dcs:		Tech PDF:
Stock Qty:	0	Sales Phone:	+86-755-23816381
Seal:	64-LQFP	Sales Phone:	+86-755-23816381
Packing:	160 per tray

Description:

Description

GigaDevice provides a wide range of high performance Flash memory and 32-bit generalpurpose MCU products. GigaDevice currently produces a wide range of SPI NOR Flash, SPI NAND Flash, ONFi NAND Flash and MCU for use in embedded, consumer, and mobile communications applications.

Specifications:
Attribute	Value
Category	Embedded Processors & Controllers/Microcontroller Units (MCUs/MPUs/SOCs)
Datasheet	GigaDevice Semicon Beijing GD32F407RET6
RoHS
Program FLASH Size	512KB
Operating Temperature Range	-40℃~+85℃
Supply Voltage Range	2.6V~3.6V
CPU Core	ARM Cortex-M4
(E)PWM (Units/Channels/bits)	2@x16bit
Peripherals / Functions / Protocol Stacks	On-chip temperature sensor;DMA;WDT;LIN(Local Interconnect Network);PWM;Ethernet protocol stack;IrDA;SDIO;Real-Time Clock
DAC (Units/Channels/bits)	2@x12bit
ADC (Units/Channels/bits)	3@x12bit
USB (H/D/OTG)	Full-speed USB OTG;High-SpeedUSB OTG
RAM Size	192KB
I2C Number	3
U(S)ART Number	6
CMP Number	-
32Bit Timer Number	2
16Bit Timer Number	10
8Bit Timer Number	-
Internal Oscillator	Internal oscillator included
Maximum Frequency	168MHz
External Clock Frequency Rang	4MHz~32MHz
CAN Number	2
(Q)SPI Number	3
GPIO Ports Number	51
EEPROM/Data FLASH Size	-
I2S Number	-
