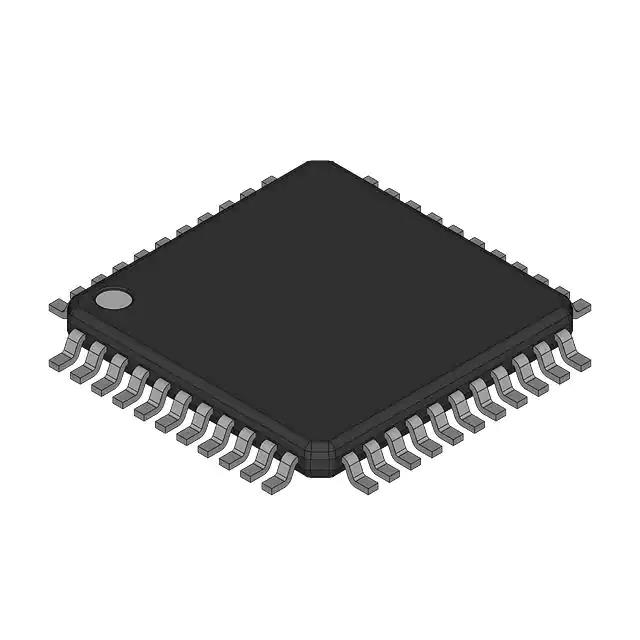

STC15W4K48S4-30I-LQFP44 microcontroller
STC15W4K48S4-30I-LQFP44 microcontroller

ModelCode:    STC15W4K48S4-30I-LQFP44 microcontroller Update:    2022-03-14 11:46:34
Factory:    Connectors and Cables Hits:    636
Dcs:     Tech PDF:
Stock Qty:    0 Sales Phone:    +86-755-23816381
Seal:    44-LQFP
Packing:    160 per tray

Description:


Specifications:
 Attribute Value
Category Embedded Processors & Controllers/Microcontroller Units (MCUs/MPUs/SOCs)
Datasheet  STC Micro STC15W4K48S4-30I-LQFP44
RoHS
Program FLASH Size 48KB
Operating Temperature Range -40℃~+85℃
Supply Voltage Range 2.5V~5.5V
Peripherals / Functions / Protocol Stacks Low-VoltageDetect;WDT;CCP capture/compare
(E)PWM (Units/Channels/bits) 1@x6ch/15bit
CPU Core 51Series
USB (H/D/OTG) -
DAC (Units/Channels/bits) -
ADC (Units/Channels/bits) 1@x8ch/10bit
I2C Number -
RAM Size 4KB
U(S)ART Number 4
CMP Number 1
32Bit Timer Number -
16Bit Timer Number 5
8Bit Timer Number -
Internal Oscillator Internal oscillator included
Maximum Frequency -
CAN Number -
External Clock Frequency Rang -
(Q)SPI Number 1
GPIO Ports Number 42
I2S Number -
EEPROM/Data FLASH Size 10KB
