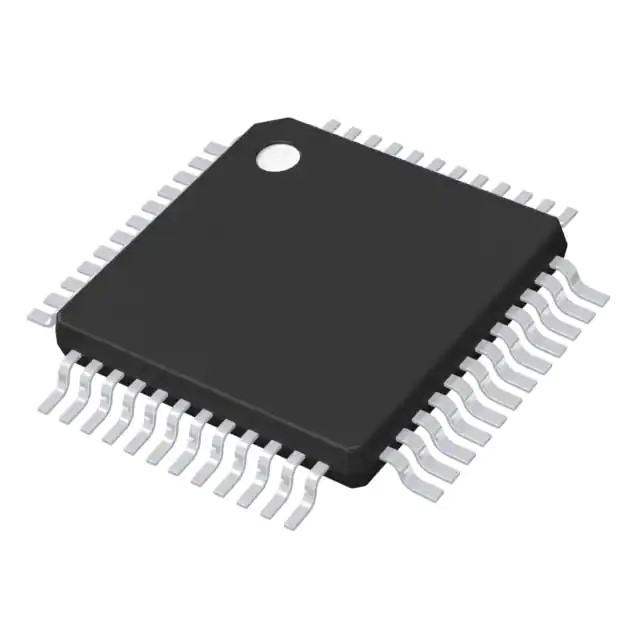

GD32F150C8T6 microcontroller
| ModelCode: | GD32F150C8T6 microcontroller | Update: | 2022-03-10 15:03:06 |
| Factory: | Connectors and Cables | Hits: | 482 |
| Dcs: | Tech PDF: |  |
|
| Stock Qty: | 0 | Sales Phone: | +86-755-23816381 |
| Seal: | 48-LQFP | ||
| Packing: | 250 per tray | ||
Description:
| Specifications: | |
| Attribute | Value |
| Category | Embedded Processors & Controllers/Microcontroller Units (MCUs/MPUs/SOCs) |
| Datasheet | GigaDevice Semicon Beijing GD32F150C8T6 |
| RoHS | |
| Program FLASH Size | 64KB |
| Operating Temperature Range | -40℃~+85℃ |
| Supply Voltage Range | 2.6V~3.6V |
| CPU Core | ARM Cortex-M3 |
| Peripherals / Functions / Protocol Stacks | On-chip temperature sensor;DMA;WDT;LIN(Local Interconnect Network);PWM;Divider;Touch button;Multiplier;Real-Time Clock |
| (E)PWM (Units/Channels/bits) | 1@x16bit |
| USB (H/D/OTG) | Full-speed USB Device |
| DAC (Units/Channels/bits) | 1@x12bit |
| ADC (Units/Channels/bits) | 1@x10ch/12bit |
| RAM Size | 8KB |
| I2C Number | 2 |
| U(S)ART Number | 2 |
| CMP Number | 2 |
| 32Bit Timer Number | 1 |
| 16Bit Timer Number | 6 |
| 8Bit Timer Number | - |
| Internal Oscillator | Internal oscillator included |
| Maximum Frequency | 72MHz |
| CAN Number | - |
| External Clock Frequency Rang | 4MHz~32MHz |
| GPIO Ports Number | 39 |
| (Q)SPI Number | 2 |
| EEPROM/Data FLASH Size | - |
| I2S Number | - |
